Accessing CMIP6 data with intake-esm#

This notebook demonstrates how to access Google Cloud CMIP6 data using intake-esm.

Intake-esm is a data cataloging utility built on top of intake, pandas, and xarray. Intake-esm aims to facilitate:

  • the discovery of earth’s climate and weather datasets.

  • the ingestion of these datasets into xarray dataset containers.

It’s basic usage is shown below. To begin, let’s import intake:

import intake

Load the catalog#

At import time, intake-esm plugin is available in intake’s registry as esm_datastore and can be accessed with intake.open_esm_datastore() function. Use the intake_esm.tutorial.get_url() method to access smaller subsetted catalogs for tutorial purposes.

import intake_esm
url = intake_esm.tutorial.get_url('google_cmip6')
print(url)
https://raw.githubusercontent.com/intake/intake-esm/main/tutorial-catalogs/GOOGLE-CMIP6.json
cat = intake.open_esm_datastore(url)
cat

GOOGLE-CMIP6 catalog with 4 dataset(s) from 261 asset(s):

unique
activity_id 1
institution_id 2
source_id 2
experiment_id 1
member_id 72
table_id 2
variable_id 3
grid_label 2
zstore 261
dcpp_init_year 0
version 4
derived_variable_id 0

The summary above tells us that this catalog contains 261 data assets. We can get more information on the individual data assets contained in the catalog by looking at the underlying dataframe created when we load the catalog:

cat.df.head()
activity_id institution_id source_id experiment_id member_id table_id variable_id grid_label zstore dcpp_init_year version
0 CMIP IPSL IPSL-CM6A-LR historical r2i1p1f1 Amon va gr gs://cmip6/CMIP6/CMIP/IPSL/IPSL-CM6A-LR/histor... NaN 20180803
1 CMIP IPSL IPSL-CM6A-LR historical r2i1p1f1 Amon ua gr gs://cmip6/CMIP6/CMIP/IPSL/IPSL-CM6A-LR/histor... NaN 20180803
2 CMIP IPSL IPSL-CM6A-LR historical r8i1p1f1 Oyr o2 gn gs://cmip6/CMIP6/CMIP/IPSL/IPSL-CM6A-LR/histor... NaN 20180803
3 CMIP IPSL IPSL-CM6A-LR historical r30i1p1f1 Amon ua gr gs://cmip6/CMIP6/CMIP/IPSL/IPSL-CM6A-LR/histor... NaN 20180803
4 CMIP IPSL IPSL-CM6A-LR historical r30i1p1f1 Amon va gr gs://cmip6/CMIP6/CMIP/IPSL/IPSL-CM6A-LR/histor... NaN 20180803

The first data asset listed in the catalog contains:

  • the Northward Wind (variable_id=’va’), as a function of latitude, longitude, time,

  • the latest version of the IPSL climate model (source_id=’IPSL-CM6A-LR’),

  • hindcasts initialized from observations with historical forcing (experiment_id=’historical’),

  • developed by theInstitut Pierre Simon Laplace (instution_id=’IPSL’),

  • run as part of the Coupled Model Intercomparison Project (activity_id=’CMIP’)

And is located in Google Cloud Storage at ‘gs://cmip6/CMIP6/CMIP/IPSL/IPSL-CM6A-LR/historical/r2i1p1f1/Amon/va/gr/v20180803/’.

Finding unique entries#

To get unique values for given columns in the catalog, intake-esm provides a unique() method:

Let’s query the data catalog to see what models(source_id), experiments (experiment_id) and temporal frequencies (table_id) are available.

unique = cat.unique()
unique
activity_id                                                       [CMIP]
institution_id                                             [IPSL, CCCma]
source_id                                        [IPSL-CM6A-LR, CanESM5]
experiment_id                                               [historical]
member_id              [r2i1p1f1, r8i1p1f1, r30i1p1f1, r29i1p1f1, r3i...
table_id                                                     [Amon, Oyr]
variable_id                                                 [va, ua, o2]
grid_label                                                      [gr, gn]
zstore                 [gs://cmip6/CMIP6/CMIP/IPSL/IPSL-CM6A-LR/histo...
dcpp_init_year                                                        []
version                         [20180803, 20190429, 20190802, 20191204]
derived_variable_id                                                   []
dtype: object
unique['source_id']
['IPSL-CM6A-LR', 'CanESM5']
unique['experiment_id']
['historical']
unique['table_id']
['Amon', 'Oyr']

Search for specific datasets#

The search() method allows the user to perform a query on a catalog using keyword arguments. The keyword argument names must match column names in the catalog. The search method returns a subset of the catalog with all the entries that match the provided query.

In the example below, we are are going to search for the following:

  • variable_d: o2 which stands for mole_concentration_of_dissolved_molecular_oxygen_in_sea_water

  • experiments: [‘historical’, ‘ssp585’]:

    • historical: all forcing of the recent past.

    • ssp585: emission-driven RCP8.5 based on SSP5.

  • table_id: 0yr which stands for annual mean variables on the ocean grid.

  • grid_label: gn which stands for data reported on a model’s native grid.

Note

For more details on the CMIP6 vocabulary, please check this website, and Core Controlled Vocabularies (CVs) for use in CMIP6 GitHub repository.

cat_subset = cat.search(
    experiment_id=["historical", "ssp585"],
    table_id="Oyr",
    variable_id="o2",
    grid_label="gn",
)

cat_subset

GOOGLE-CMIP6 catalog with 2 dataset(s) from 67 asset(s):

unique
activity_id 1
institution_id 2
source_id 2
experiment_id 1
member_id 42
table_id 1
variable_id 1
grid_label 1
zstore 67
dcpp_init_year 0
version 4
derived_variable_id 0

Load datasets using to_dataset_dict()#

Intake-esm implements convenience utilities for loading the query results into higher level xarray datasets. The logic for merging/concatenating the query results into higher level xarray datasets is provided in the input JSON file and is available under .aggregation_info property of the catalog:

cat.esmcat.aggregation_control
AggregationControl(variable_column_name='variable_id', groupby_attrs=['activity_id', 'institution_id', 'source_id', 'experiment_id', 'table_id', 'grid_label'], aggregations=[Aggregation(type=<AggregationType.union: 'union'>, attribute_name='variable_id', options={}), Aggregation(type=<AggregationType.join_new: 'join_new'>, attribute_name='member_id', options={'coords': 'minimal', 'compat': 'override'}), Aggregation(type=<AggregationType.join_new: 'join_new'>, attribute_name='dcpp_init_year', options={'coords': 'minimal', 'compat': 'override'})])

To load data assets into xarray datasets, we need to use the to_dataset_dict() method. This method returns a dictionary of aggregate xarray datasets as the name hints.

dset_dict = cat_subset.to_dataset_dict(
    xarray_open_kwargs={"consolidated": True, "decode_times": True, "use_cftime": True}
)
--> The keys in the returned dictionary of datasets are constructed as follows:
	'activity_id.institution_id.source_id.experiment_id.table_id.grid_label'
100.00% [2/2 00:10<00:00]
[key for key in dset_dict.keys()]
['CMIP.IPSL.IPSL-CM6A-LR.historical.Oyr.gn',
 'CMIP.CCCma.CanESM5.historical.Oyr.gn']

We can access a particular dataset as follows:

ds = dset_dict["CMIP.CCCma.CanESM5.historical.Oyr.gn"]
ds
<xarray.Dataset>
Dimensions:             (i: 360, j: 291, lev: 45, bnds: 2, member_id: 35,
                         dcpp_init_year: 1, time: 165, vertices: 4)
Coordinates:
  * i                   (i) int32 0 1 2 3 4 5 6 ... 353 354 355 356 357 358 359
  * j                   (j) int32 0 1 2 3 4 5 6 ... 284 285 286 287 288 289 290
    latitude            (j, i) float64 dask.array<chunksize=(291, 360), meta=np.ndarray>
  * lev                 (lev) float64 3.047 9.454 16.36 ... 5.375e+03 5.625e+03
    lev_bnds            (lev, bnds) float64 dask.array<chunksize=(45, 2), meta=np.ndarray>
    longitude           (j, i) float64 dask.array<chunksize=(291, 360), meta=np.ndarray>
  * time                (time) object 1850-07-02 12:00:00 ... 2014-07-02 12:0...
    time_bnds           (time, bnds) object dask.array<chunksize=(165, 2), meta=np.ndarray>
    vertices_latitude   (j, i, vertices) float64 dask.array<chunksize=(291, 360, 4), meta=np.ndarray>
    vertices_longitude  (j, i, vertices) float64 dask.array<chunksize=(291, 360, 4), meta=np.ndarray>
  * member_id           (member_id) object 'r10i1p1f1' ... 'r9i1p2f1'
  * dcpp_init_year      (dcpp_init_year) float64 nan
Dimensions without coordinates: bnds, vertices
Data variables:
    o2                  (member_id, dcpp_init_year, time, lev, j, i) float32 dask.array<chunksize=(1, 1, 12, 45, 291, 360), meta=np.ndarray>
Attributes: (12/52)
    Conventions:                      CF-1.7 CMIP-6.2
    YMDH_branch_time_in_child:        1850:01:01:00
    activity_id:                      CMIP
    branch_method:                    Spin-up documentation
    branch_time_in_child:             0.0
    cmor_version:                     3.4.0
    ...                               ...
    intake_esm_attrs:table_id:        Oyr
    intake_esm_attrs:variable_id:     o2
    intake_esm_attrs:grid_label:      gn
    intake_esm_attrs:version:         20190429
    intake_esm_attrs:_data_format_:   zarr
    intake_esm_dataset_key:           CMIP.CCCma.CanESM5.historical.Oyr.gn

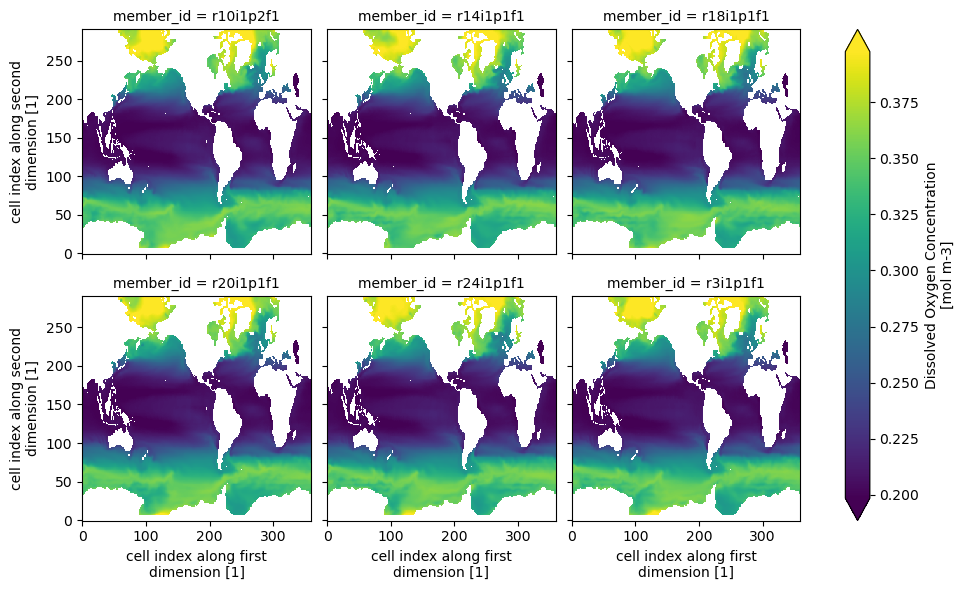

Let’s create a quick plot for a slice of the data:

ds.o2.isel(time=0, lev=0, member_id=range(1, 24, 4)).plot(col="member_id", col_wrap=3, robust=True)
<xarray.plot.facetgrid.FacetGrid at 0x7fcb26926320>
../_images/5ff6d001029a8d53a483384fa114dd0698c938eec7ae2cc10d5e83a4b6a21e54.png

Use custom preprocessing functions#

When comparing many models it is often necessary to preprocess (e.g. rename certain variables) them before running some analysis step. The preprocess argument lets the user pass a function, which is executed for each loaded asset before combining datasets.

cat_pp = cat.search(
    experiment_id=["historical"],
    table_id="Oyr",
    variable_id="o2",
    grid_label="gn",
    source_id=["IPSL-CM6A-LR", "CanESM5"],
    member_id="r10i1p1f1",
)
cat_pp.df
activity_id institution_id source_id experiment_id member_id table_id variable_id grid_label zstore dcpp_init_year version
0 CMIP IPSL IPSL-CM6A-LR historical r10i1p1f1 Oyr o2 gn gs://cmip6/CMIP6/CMIP/IPSL/IPSL-CM6A-LR/histor... NaN 20180803
1 CMIP CCCma CanESM5 historical r10i1p1f1 Oyr o2 gn gs://cmip6/CMIP6/CMIP/CCCma/CanESM5/historical... NaN 20190429
dset_dict_raw = cat_pp.to_dataset_dict(xarray_open_kwargs={"consolidated": True})

for k, ds in dset_dict_raw.items():
    print(f"dataset key={k}\n\tdimensions={sorted(list(ds.dims))}\n")
--> The keys in the returned dictionary of datasets are constructed as follows:
	'activity_id.institution_id.source_id.experiment_id.table_id.grid_label'
100.00% [2/2 00:00<00:00]
dataset key=CMIP.IPSL.IPSL-CM6A-LR.historical.Oyr.gn
	dimensions=['axis_nbounds', 'dcpp_init_year', 'member_id', 'nvertex', 'olevel', 'time', 'x', 'y']

dataset key=CMIP.CCCma.CanESM5.historical.Oyr.gn
	dimensions=['bnds', 'dcpp_init_year', 'i', 'j', 'lev', 'member_id', 'time', 'vertices']

Note

Note that both models follow a different naming scheme. We can define a little helper function and pass it to .to_dataset_dict() to fix this. For demonstration purposes we will focus on the vertical level dimension which is called lev in CanESM5 and olevel in IPSL-CM6A-LR.

def helper_func(ds):
    """Rename `olevel` dim to `lev`"""
    ds = ds.copy()
    # a short example
    if "olevel" in ds.dims:
        ds = ds.rename({"olevel": "lev"})
    return ds
dset_dict_fixed = cat_pp.to_dataset_dict(xarray_open_kwargs={"consolidated": True}, preprocess=helper_func)

for k, ds in dset_dict_fixed.items():
    print(f"dataset key={k}\n\tdimensions={sorted(list(ds.dims))}\n")
--> The keys in the returned dictionary of datasets are constructed as follows:
	'activity_id.institution_id.source_id.experiment_id.table_id.grid_label'
100.00% [2/2 00:00<00:00]
dataset key=CMIP.IPSL.IPSL-CM6A-LR.historical.Oyr.gn
	dimensions=['axis_nbounds', 'dcpp_init_year', 'lev', 'member_id', 'nvertex', 'time', 'x', 'y']

dataset key=CMIP.CCCma.CanESM5.historical.Oyr.gn
	dimensions=['bnds', 'dcpp_init_year', 'i', 'j', 'lev', 'member_id', 'time', 'vertices']

This was just an example for one dimension.

Note

Check out xmip package for a full renaming function for all available CMIP6 models and some other utilities.

Load datasets into an xarray-datatree using to_datatree()#

We can also load our data into an xarray-datatree object using the following:

tree = cat_pp.to_datatree(xarray_open_kwargs={"consolidated": True}, preprocess=helper_func)

print(tree)
--> The keys in the returned dictionary of datasets are constructed as follows:
	'activity_id/institution_id/source_id/experiment_id/table_id/grid_label'
100.00% [4/4 00:00<00:00]
DataTree('None', parent=None)
├── DataTree('CMIP.IPSL.IPSL-CM6A-LR.historical.Oyr.gn')
│       Dimensions:         (y: 332, x: 362, nvertex: 4, member_id: 1,
│                            dcpp_init_year: 1, time: 165, lev: 75, axis_nbounds: 2)
│       Coordinates:
│           bounds_nav_lat  (y, x, nvertex) float32 dask.array<chunksize=(332, 362, 4), meta=np.ndarray>
│           bounds_nav_lon  (y, x, nvertex) float32 dask.array<chunksize=(332, 362, 4), meta=np.ndarray>
│           nav_lat         (y, x) float32 dask.array<chunksize=(332, 362), meta=np.ndarray>
│           nav_lon         (y, x) float32 dask.array<chunksize=(332, 362), meta=np.ndarray>
│         * lev             (lev) float32 0.5058 1.556 2.668 ... 5.698e+03 5.902e+03
│           olevel_bounds   (lev, axis_nbounds) float32 dask.array<chunksize=(75, 2), meta=np.ndarray>
│         * time            (time) datetime64[ns] 1850-07-02T12:00:00 ... 2014-07-02T...
│           time_bounds     (time, axis_nbounds) datetime64[ns] dask.array<chunksize=(165, 2), meta=np.ndarray>
│         * member_id       (member_id) object 'r10i1p1f1'
│         * dcpp_init_year  (dcpp_init_year) float64 nan
│       Dimensions without coordinates: y, x, nvertex, axis_nbounds
│       Data variables:
│           area            (y, x) float32 dask.array<chunksize=(332, 362), meta=np.ndarray>
│           o2              (member_id, dcpp_init_year, time, lev, y, x) float32 dask.array<chunksize=(1, 1, 9, 75, 332, 362), meta=np.ndarray>
│       Attributes: (12/66)
│           CMIP6_CV_version:                 cv=6.2.3.5-2-g63b123e
│           Conventions:                      CF-1.7 CMIP-6.2
│           EXPID:                            historical
│           activity_id:                      CMIP
│           branch_method:                    standard
│           branch_time_in_child:             0.0
│           ...                               ...
│           intake_esm_attrs:variable_id:     o2
│           intake_esm_attrs:grid_label:      gn
│           intake_esm_attrs:zstore:          gs://cmip6/CMIP6/CMIP/IPSL/IPSL-CM6A-LR...
│           intake_esm_attrs:version:         20180803
│           intake_esm_attrs:_data_format_:   zarr
│           intake_esm_dataset_key:           CMIP.IPSL.IPSL-CM6A-LR.historical.Oyr.gn
├── DataTree('CMIP.CCCma.CanESM5.historical.Oyr.gn')
│       Dimensions:             (i: 360, j: 291, lev: 45, bnds: 2, member_id: 1,
│                                dcpp_init_year: 1, time: 165, vertices: 4)
│       Coordinates:
│         * i                   (i) int32 0 1 2 3 4 5 6 ... 353 354 355 356 357 358 359
│         * j                   (j) int32 0 1 2 3 4 5 6 ... 284 285 286 287 288 289 290
│           latitude            (j, i) float64 dask.array<chunksize=(291, 360), meta=np.ndarray>
│         * lev                 (lev) float64 3.047 9.454 16.36 ... 5.375e+03 5.625e+03
│           lev_bnds            (lev, bnds) float64 dask.array<chunksize=(45, 2), meta=np.ndarray>
│           longitude           (j, i) float64 dask.array<chunksize=(291, 360), meta=np.ndarray>
│         * time                (time) object 1850-07-02 12:00:00 ... 2014-07-02 12:0...
│           time_bnds           (time, bnds) object dask.array<chunksize=(165, 2), meta=np.ndarray>
│         * member_id           (member_id) object 'r10i1p1f1'
│         * dcpp_init_year      (dcpp_init_year) float64 nan
│       Dimensions without coordinates: bnds, vertices
│       Data variables:
│           o2                  (member_id, dcpp_init_year, time, lev, j, i) float32 dask.array<chunksize=(1, 1, 12, 45, 291, 360), meta=np.ndarray>
│           vertices_latitude   (j, i, vertices) float64 dask.array<chunksize=(291, 360, 4), meta=np.ndarray>
│           vertices_longitude  (j, i, vertices) float64 dask.array<chunksize=(291, 360, 4), meta=np.ndarray>
│       Attributes: (12/69)
│           CCCma_model_hash:                 55f484f90aff0e32c5a8e92a42c6b9ae7ffe6224
│           CCCma_parent_runid:               rc3.1-pictrl
│           CCCma_pycmor_hash:                33c30511acc319a98240633965a04ca99c26427e
│           CCCma_runid:                      rc3.1-his10
│           Conventions:                      CF-1.7 CMIP-6.2
│           YMDH_branch_time_in_child:        1850:01:01:00
│           ...                               ...
│           intake_esm_attrs:variable_id:     o2
│           intake_esm_attrs:grid_label:      gn
│           intake_esm_attrs:zstore:          gs://cmip6/CMIP6/CMIP/CCCma/CanESM5/his...
│           intake_esm_attrs:version:         20190429
│           intake_esm_attrs:_data_format_:   zarr
│           intake_esm_dataset_key:           CMIP.CCCma.CanESM5.historical.Oyr.gn
└── DataTree('CMIP')
    ├── DataTree('IPSL')
    │   └── DataTree('IPSL-CM6A-LR')
    │       └── DataTree('historical')
    │           └── DataTree('Oyr')
    │               └── DataTree('gn')
    │                       Dimensions:         (y: 332, x: 362, nvertex: 4, member_id: 1,
    │                                            dcpp_init_year: 1, time: 165, lev: 75, axis_nbounds: 2)
    │                       Coordinates:
    │                           bounds_nav_lat  (y, x, nvertex) float32 dask.array<chunksize=(332, 362, 4), meta=np.ndarray>
    │                           bounds_nav_lon  (y, x, nvertex) float32 dask.array<chunksize=(332, 362, 4), meta=np.ndarray>
    │                           nav_lat         (y, x) float32 dask.array<chunksize=(332, 362), meta=np.ndarray>
    │                           nav_lon         (y, x) float32 dask.array<chunksize=(332, 362), meta=np.ndarray>
    │                         * lev             (lev) float32 0.5058 1.556 2.668 ... 5.698e+03 5.902e+03
    │                           olevel_bounds   (lev, axis_nbounds) float32 dask.array<chunksize=(75, 2), meta=np.ndarray>
    │                         * time            (time) datetime64[ns] 1850-07-02T12:00:00 ... 2014-07-02T...
    │                           time_bounds     (time, axis_nbounds) datetime64[ns] dask.array<chunksize=(165, 2), meta=np.ndarray>
    │                         * member_id       (member_id) object 'r10i1p1f1'
    │                         * dcpp_init_year  (dcpp_init_year) float64 nan
    │                       Dimensions without coordinates: y, x, nvertex, axis_nbounds
    │                       Data variables:
    │                           area            (y, x) float32 dask.array<chunksize=(332, 362), meta=np.ndarray>
    │                           o2              (member_id, dcpp_init_year, time, lev, y, x) float32 dask.array<chunksize=(1, 1, 9, 75, 332, 362), meta=np.ndarray>
    │                       Attributes: (12/66)
    │                           CMIP6_CV_version:                 cv=6.2.3.5-2-g63b123e
    │                           Conventions:                      CF-1.7 CMIP-6.2
    │                           EXPID:                            historical
    │                           activity_id:                      CMIP
    │                           branch_method:                    standard
    │                           branch_time_in_child:             0.0
    │                           ...                               ...
    │                           intake_esm_attrs:variable_id:     o2
    │                           intake_esm_attrs:grid_label:      gn
    │                           intake_esm_attrs:zstore:          gs://cmip6/CMIP6/CMIP/IPSL/IPSL-CM6A-LR...
    │                           intake_esm_attrs:version:         20180803
    │                           intake_esm_attrs:_data_format_:   zarr
    │                           intake_esm_dataset_key:           CMIP/IPSL/IPSL-CM6A-LR/historical/Oyr/gn
    └── DataTree('CCCma')
        └── DataTree('CanESM5')
            └── DataTree('historical')
                └── DataTree('Oyr')
                    └── DataTree('gn')
                            Dimensions:             (i: 360, j: 291, lev: 45, bnds: 2, member_id: 1,
                                                     dcpp_init_year: 1, time: 165, vertices: 4)
                            Coordinates:
                              * i                   (i) int32 0 1 2 3 4 5 6 ... 353 354 355 356 357 358 359
                              * j                   (j) int32 0 1 2 3 4 5 6 ... 284 285 286 287 288 289 290
                                latitude            (j, i) float64 dask.array<chunksize=(291, 360), meta=np.ndarray>
                              * lev                 (lev) float64 3.047 9.454 16.36 ... 5.375e+03 5.625e+03
                                lev_bnds            (lev, bnds) float64 dask.array<chunksize=(45, 2), meta=np.ndarray>
                                longitude           (j, i) float64 dask.array<chunksize=(291, 360), meta=np.ndarray>
                              * time                (time) object 1850-07-02 12:00:00 ... 2014-07-02 12:0...
                                time_bnds           (time, bnds) object dask.array<chunksize=(165, 2), meta=np.ndarray>
                              * member_id           (member_id) object 'r10i1p1f1'
                              * dcpp_init_year      (dcpp_init_year) float64 nan
                            Dimensions without coordinates: bnds, vertices
                            Data variables:
                                o2                  (member_id, dcpp_init_year, time, lev, j, i) float32 dask.array<chunksize=(1, 1, 12, 45, 291, 360), meta=np.ndarray>
                                vertices_latitude   (j, i, vertices) float64 dask.array<chunksize=(291, 360, 4), meta=np.ndarray>
                                vertices_longitude  (j, i, vertices) float64 dask.array<chunksize=(291, 360, 4), meta=np.ndarray>
                            Attributes: (12/69)
                                CCCma_model_hash:                 55f484f90aff0e32c5a8e92a42c6b9ae7ffe6224
                                CCCma_parent_runid:               rc3.1-pictrl
                                CCCma_pycmor_hash:                33c30511acc319a98240633965a04ca99c26427e
                                CCCma_runid:                      rc3.1-his10
                                Conventions:                      CF-1.7 CMIP-6.2
                                YMDH_branch_time_in_child:        1850:01:01:00
                                ...                               ...
                                intake_esm_attrs:variable_id:     o2
                                intake_esm_attrs:grid_label:      gn
                                intake_esm_attrs:zstore:          gs://cmip6/CMIP6/CMIP/CCCma/CanESM5/his...
                                intake_esm_attrs:version:         20190429
                                intake_esm_attrs:_data_format_:   zarr
                                intake_esm_dataset_key:           CMIP/CCCma/CanESM5/historical/Oyr/gn
import intake_esm  # just to display version information
intake_esm.show_versions()
INSTALLED VERSIONS
------------------

cftime: 1.6.1
dask: 2022.6.1
fastprogress: 1.0.3
fsspec: 2022.8.2
gcsfs: 2022.8.2
intake: 0.6.6
intake_esm: 2022.9.18.post0+dirty
netCDF4: 1.6.1
pandas: 1.4.4
requests: 2.28.1
s3fs: 2022.8.2
xarray: 2022.6.0
zarr: 2.12.0
